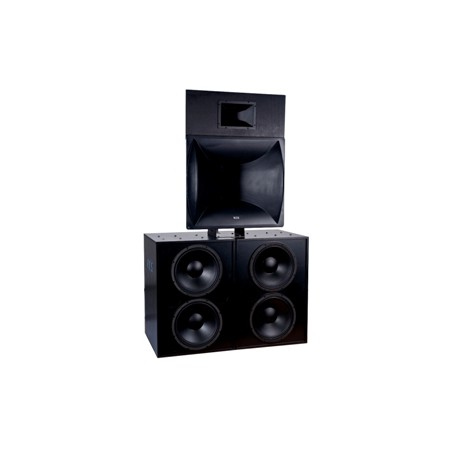

KCS S-8500

Triamplified KCS S-8500 speaker system is especially designed for high quality and
spectacular cinema installations in large capacity theaters.

S-8500 system features two low frequency cabinets with two 18” Ø speakers
in each cabinet which are especially designed to optimize reproduction of the low frequencies.
The mid-frequency section has a compression driver with 4” Ø titanium membrane,
3” Ø mouth, and constant directivity horn.

The high-frequency section has a compression driver with neodymium magnetic structure,
4” Ø titanium membrane, 2” Ø mouth, and constant directivity horn.
The main improvements that have been achieved with this new system include
high SPL acoustic performance at 10 metre distance on axis, transient response,
no nodes in the 300 Hz to 500 Hz frequency range and increased power handling
for the instant sound response demanded by the new soundtracks on the
5 kHz to 10 kHz frequency range.

Three-way screen channel cinema sound system for large capacity theaters and
high quality level, high spectacularity installations
