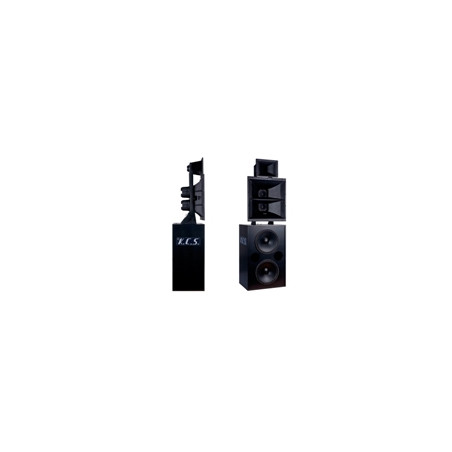

KCS S-8802

KCS S-8802 three-way speaker systems has been enhanced for the

screen channel in large theaters ; its 47 cm depth makes it especially

suitable where there is a space limitation behind the projection screen.

The KCS S-8802 (triamplified) speaker system is designed to operate

with external active crossovers to cut frequencies both between

the low and mid ranges (400 Hz) and between the mid and high ranges

(1.3 kHz).

The high dynamics demanded to screen channel speaker systems by

current soundtracks requires the use of three-way systems in order to

ensure high SPL levels in the auditorium while keeping distortion at

inaudible levels.

Each of the three ways is controlled by transducers which are

specifically designed to operate in the required frequency range and

ensure a precise and distortion-free reproduction.

This system features a bass cabinet with direct radiation technology

fitted with two 15” Ø speakers.

Voice spectrum in this three-way design is reproduced by two 6.5”

cone speakers and 90º x 30º constant dispersion horns,
improving intelligibility

of dialogues as compared to conventional two-way

speaker systems.

The High-Frequency section has been enhanced with high SPL and

low distortion compression driver with a 3” Ø Titanium and a newly

designed 90º x 40º constant directivity horn giving the most natural

sound experience.

Three-way screen channel cinema sound system enhanced for

large capacity theaters
