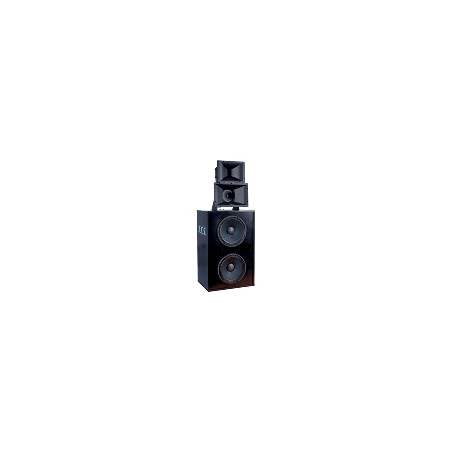

KCS S-7601

KCS S-7601 three-way speaker systems is designed for screen channels in

medium size theaters. Its 47 cm depth makes it especially suitable where t

here is a space limitation behind the projection screen.

The S-7601 system includes a passive crossover with cut frequency

at 1.8 kHz between the mid and high ranges.

 Between mid and low frequencies, this system is designed to operate

with an external active crossover with cut frequency at 380 Hz.

The high dynamics demanded to screen channel speaker systems by

current digital soundtracks requires the use of three-way systems

in order to ensure high SPL levels in the auditorium while keeping

distortion at inaudible levels.

Each of the three ways in S-7601 speaker systems is controlled

by transducers which are specifically designed to operate in the r

equired frequency range and ensure a precise and distortion-free reproduction.

This speaker system feature a bass cabinet with direct radiation technology,

fitted with two 15” Ø speakers.

Voice spectrum in this three-way design is reproduced by one 6.5”

cone speaker and one 90º x 40º constant dispersion horn, improving

intelligibility of dialogues as compared to conventional two-way speaker systems.

Its high-frequency section consists of a compression driver with titanium
membrane and a constant directivity horn.

Three- way screen channel cinema sound system for

medium capacity theaters
