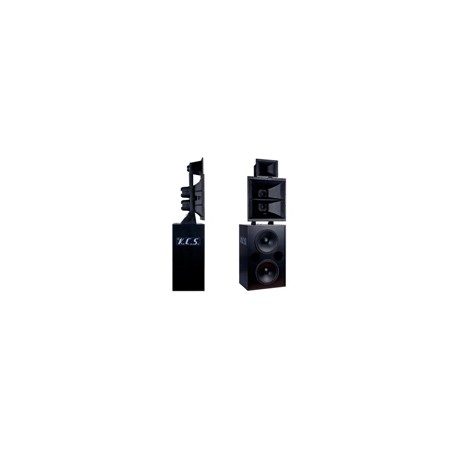

KCS S-8801

KCS S-8801 three-way speaker systems has been enhanced for the

screen channel in large theaters ; its 47 cm depth makes it

especially suitable where there is a space limitation behind the projection screen.

The KCS S-8801 (biamplified) speaker system includes a passive crossover

to cut frequencies between mid and high frequencies.

Between mid and low frequencies, this system is designed to operate with an

external active crossover with cut frequency at 400 Hz.

The high dynamics demanded to screen channel speaker systems by

current soundtracks requires the use of three-way systems in order to

ensure high SPL levels in the auditorium while keeping distortion at inaudible levels.

Each of the three ways is controlled by transducers which are

specifically designed to operate in the required frequency range and ensure a

precise and distortion-free reproduction.

This system features a bass cabinet with direct radiation technology

fitted with two 15” Ø speakers.

Voice spectrum in this three-way design is reproduced by

two 6.5” cone speakers and 90º x 30º constant dispersion horns,

improving intelligibility of dialogues as compared to conventional
two-way speaker systems.

The High-Frequency section has been enhanced with high SPL

and low distortion compression driver with a 3” Ø Titanium and

a newly designed 90º x 40º constant directivity horn giving the most

natural sound experience.

Three-way screen channel cinema sound system enhanced for

large capacity theaters
